DMG10600S070_03W DWIN T5L2 HMI 7" IPS ЖК-дисплей для суровых условий эксплуатации
-
WTC
-
WTR
-
WN
-
-
-
400 nit
-
450 nit
-
500 nit
-
-
Особенности:
- На базе T5L2, с системой DGUS II, для применения в суровых условиях на открытом воздухе.
- 7.0-дюймовый, разрешение 1024*600 пикселей, 16,7 млн цветов, IPS-TFT-LCD, широкий угол обзора.
- С защитой от ультрафиолета и функцией AG.
- Способен работать в сверхшироком диапазоне температур от -40 до 85℃ с конформным покрытием.
- Поддержка связи по протоколам RS232 и RS485.
DMG10600S070_03W DWIN T5L2 HMI 7" IPS ЖК-дисплей для суровых условий эксплуатации

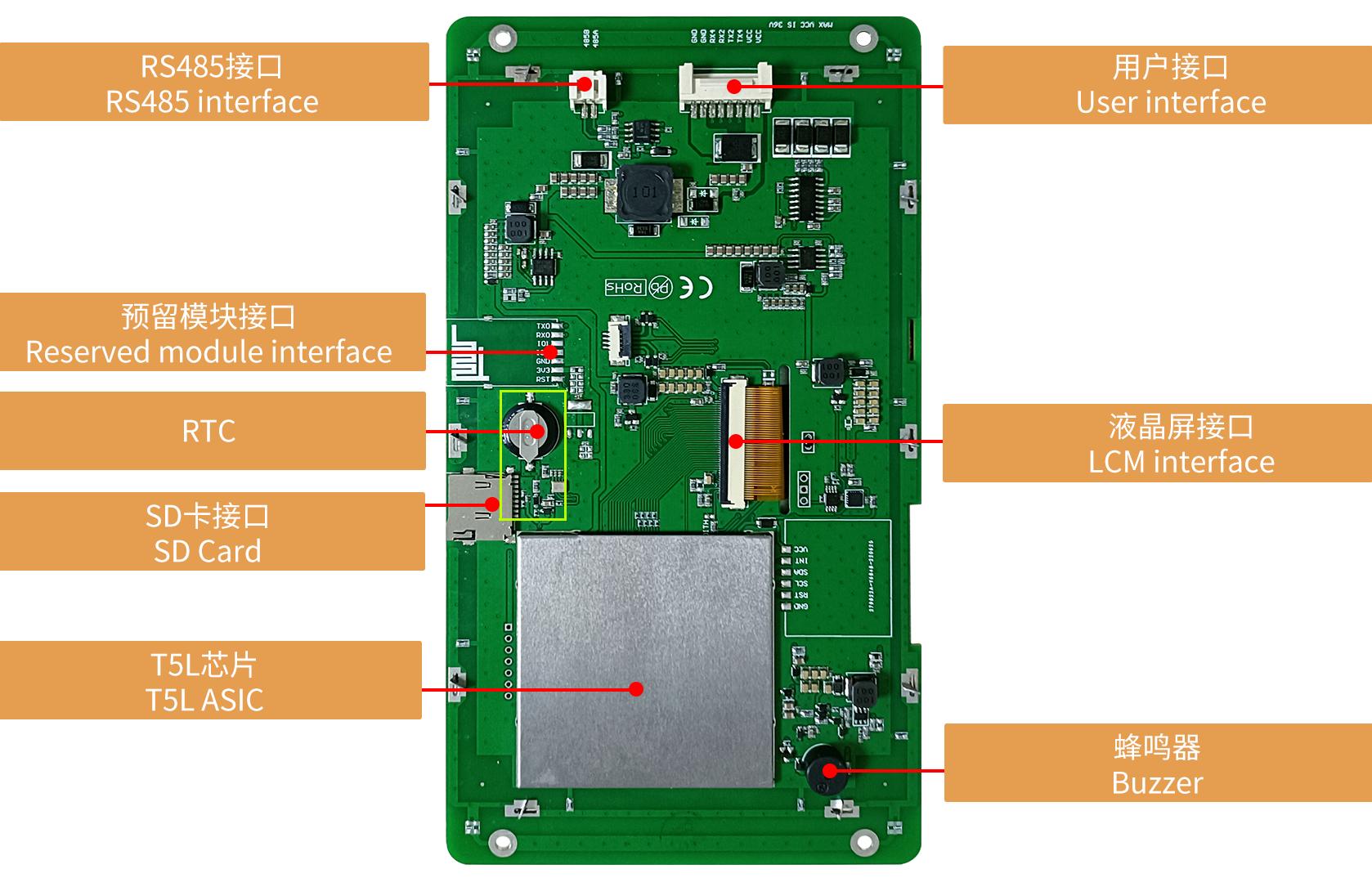

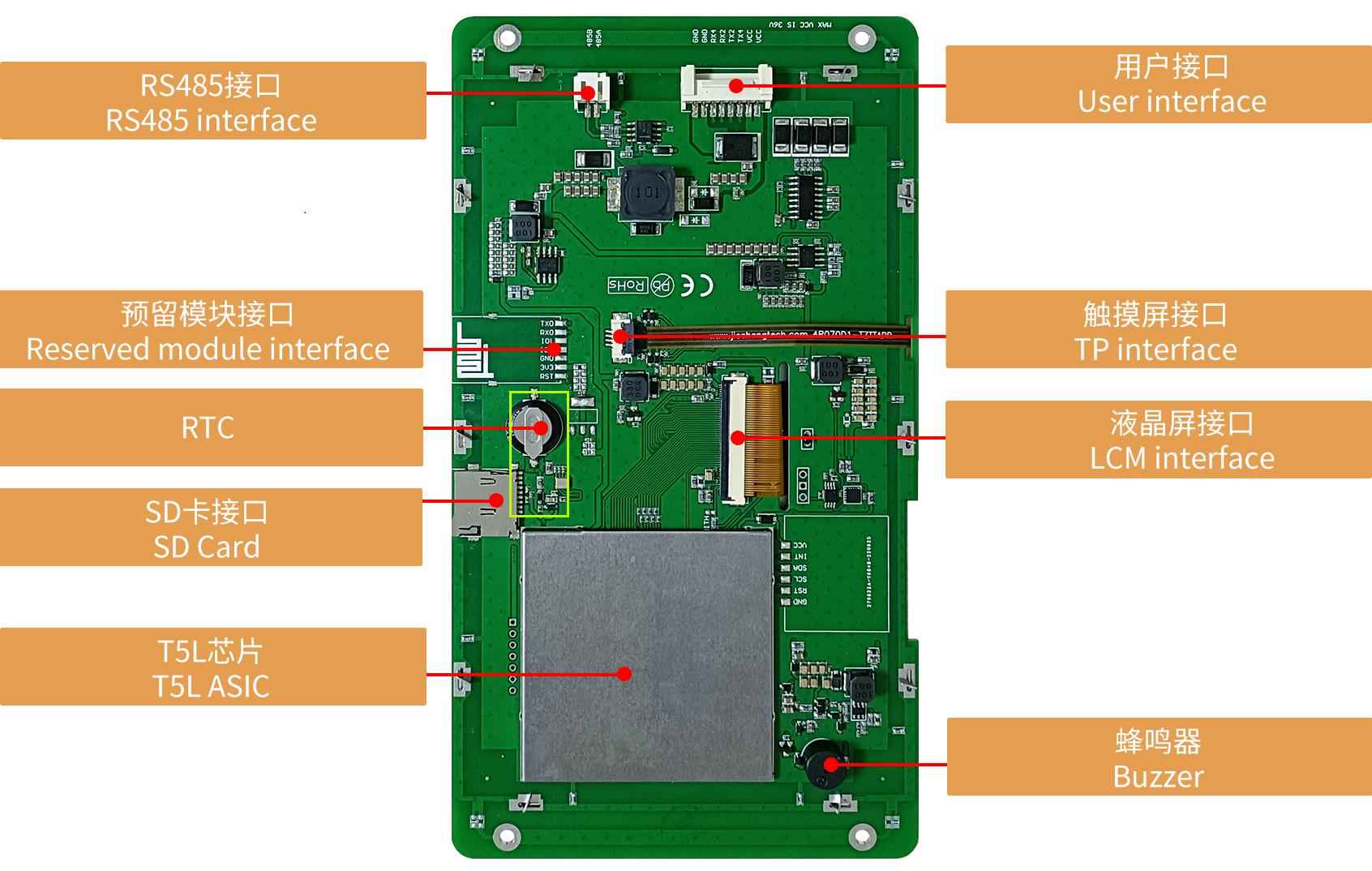

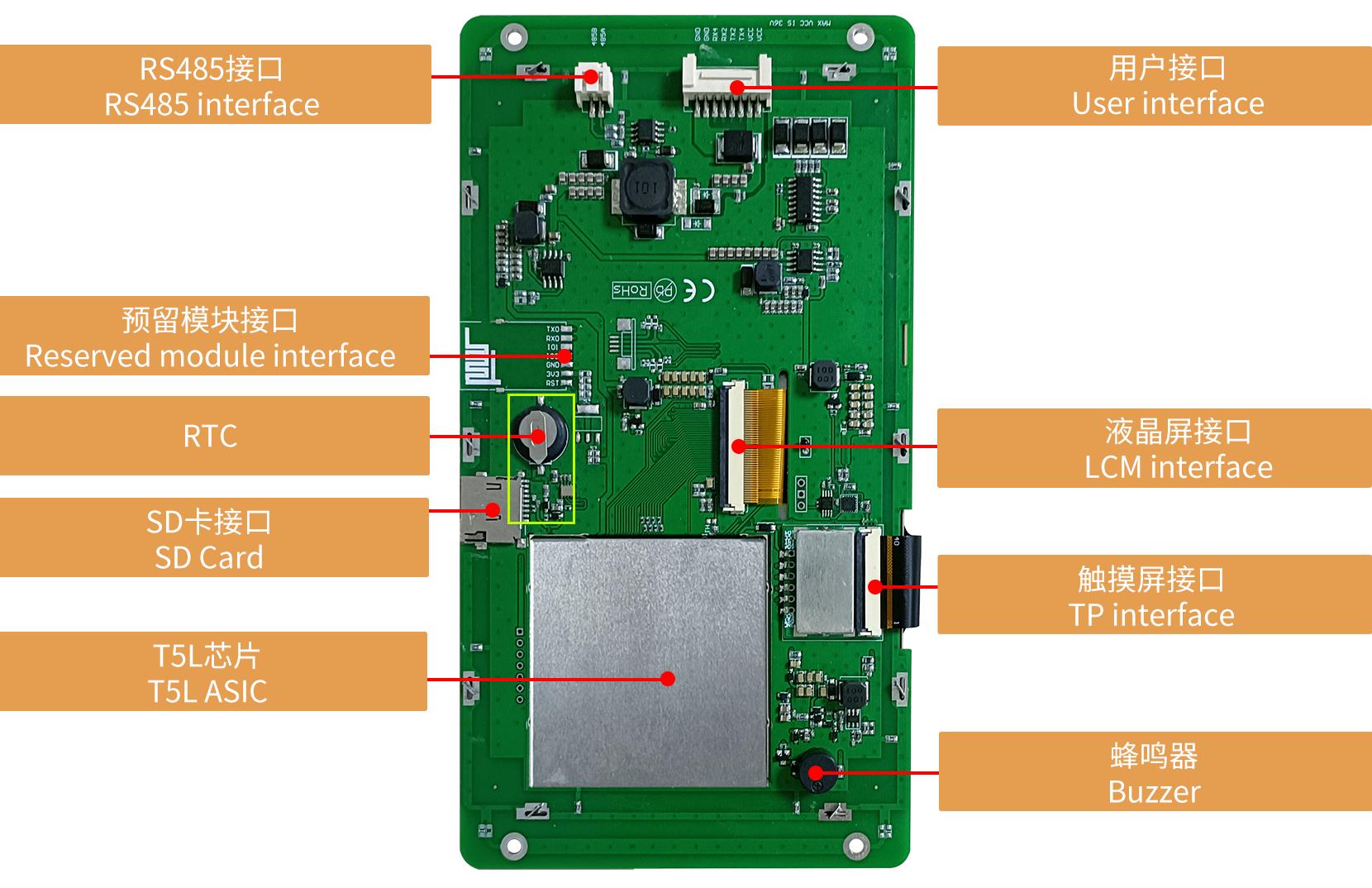

T5L2 ASIC | Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
LCM interface | FPC50_0.5mm, RGB interface |
TP interface | CTP: COB structure, IIC interface |
RTP: 4Pin_1.0mm interface | |
User interface | 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
Flash | 32 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
Expand Flash | Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash |
RS485 interface | 2Pin_ 2.0mm horizontal socket: For RS485 communication |
Buzzer | 3V passive buzzer. Power: <1W |
RTC | Super-capacitor for power supply. Accuracy: ±20ppm@25℃. It can work normally for 7 days after power failure |
SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
Reserved module interface | Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk |
PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
LCD Type | IPS,TFT LCD |
Viewing Angle | Wide viewing angle, 85°/85°/85°/85°(L/R/U/D) |
Resolution | 1024×600 pixels (support 0°/90°/180°/270°) |
Color | 24-bit 8R8G8B |
Active Area (A.A.) | 154.08mm (W)×85.92mm (H) |
Backlight Mode | LED |
Backlight Service Life | >30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
Brightness | DMG10600S070_03WTC: 450nit |
DMG10600S070_03WTR: 400nit | |
DMG10600S070_03WN: 500nit | |
Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range) |
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. |
Type | CTP (Capacitive touch panel) |
Structure | G+G structure with surface cover of tempered glass |
Touch Mode | Support point touch and drag |
Surface Hardness | 6H |
Light Transmittance | Over 90% |
Life | Over 1,000,000 times touch |
Type | RTP (Resistive touch panel) |
Structure | ITO film + ITO glass |
Touch Mode | Support point touch and drag |
Surface Hardness | 3H |
Light Transmittance | Over 80% |
Life | Over 1,000,000 times touch |
Mode |
UART2: RS232 UART4: RS232(Only available after OS configuration) UART5: RS485(Only available after OS configuration) |
|||||
UART2,4 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
Output 1 | - | -5.0 | -3.0 | V | ||
Output 0 | 3.0 | 5.0 | - | V | ||
Input 1 | -15.0 | -5.0 | - | V | ||
Input 0 | - | 5.0 | 15.0 | V | ||
UART2,4 Baud Rate |
3150~3225600bps, typical value of 115200bps | |||||
UART5 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
Output 1 | 2.5 | 5.0 | - | V | ||
Output 0 | - | -5.0 | -2.5 | V | ||
Input 1 | 0 | 2.5 | - | V | ||
Input 0 | - | -2.5 | -0.2 | V | ||
UART5 Baud Rate |
3150~921600bps, typical value of 115200bps | |||||
Data Format |
UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (O Sconfiguration) UART5: N81/E81/O81/N82 ,4 modes (O Sconfiguration) |
|||||
Interface Cable |
8Pin_2.0mm (RS232) 2Pin_2.0mm (RS485) |
Operating Voltage | 12~36V, typical value of 12V | |||||
Operating Current | 330mA | 12V @ 25℃ | ||||
580mA | 12V @ -40℃ | |||||
Recommended power supply: 12V 1A DC |
Operating Temperature | -40℃~85℃ (12V @ 60% RH) | |||||
Storage Temperature | -40℃~85℃ | |||||
Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
Anti-UV (TP) | Yes | |||||
Conformal Coating | Yes | |||||
Aging Test | 72 hours high temperature charged aging at 50℃ |

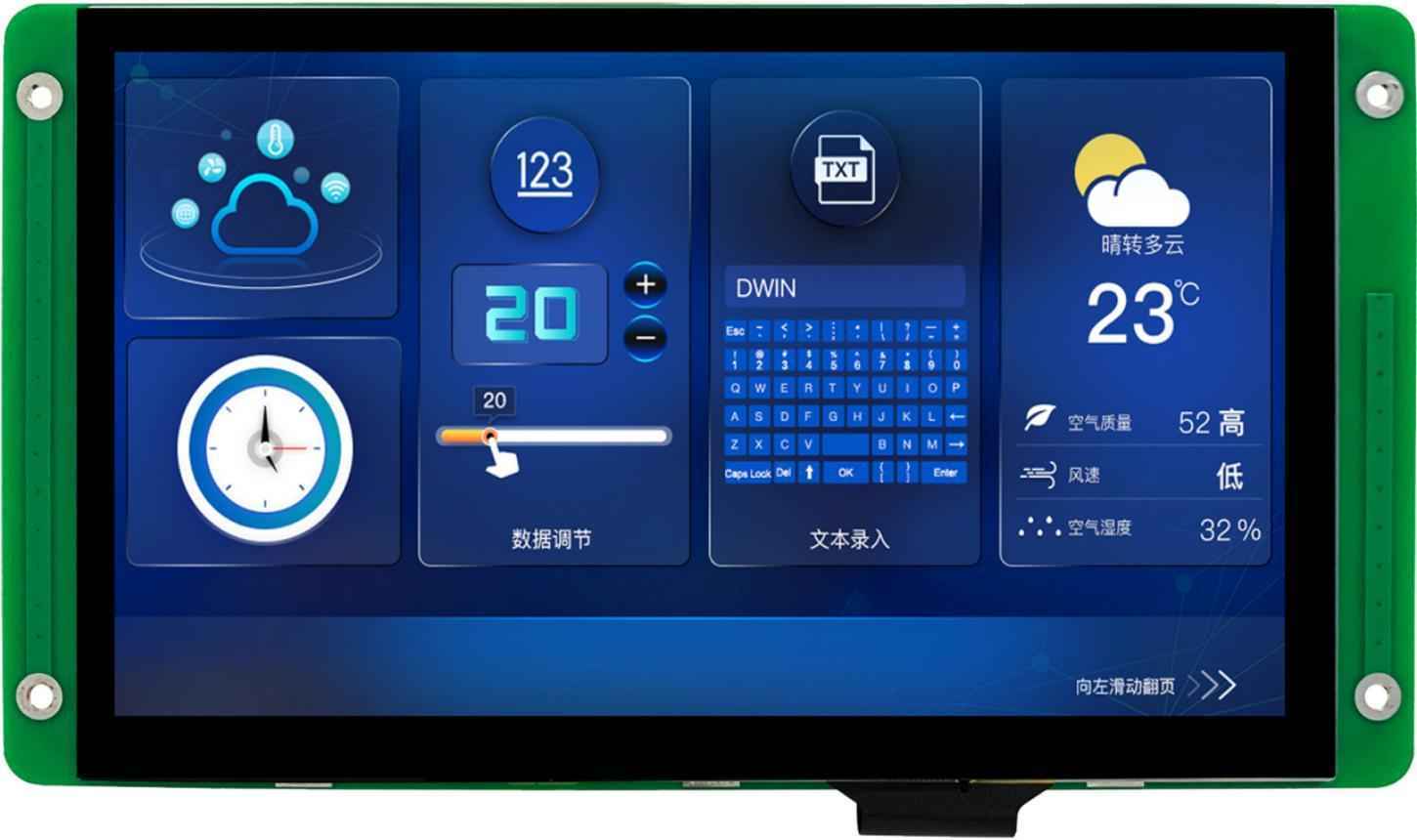

DMG10600S070_03WTC | Capacitive touch panel, buzzer,RTC |

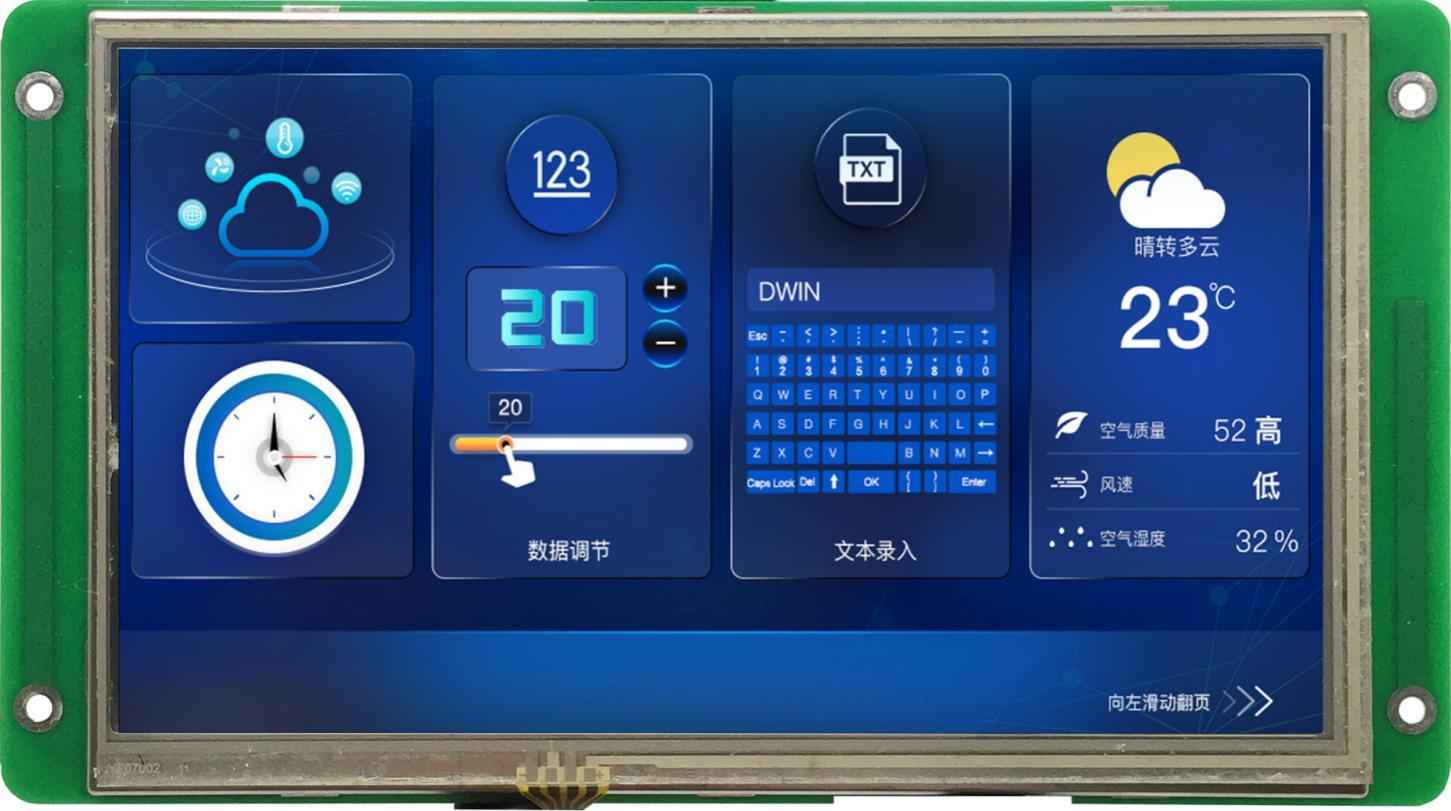

DMG10600S070_03WTR | Resistive touch panel, buzzer,RTC |

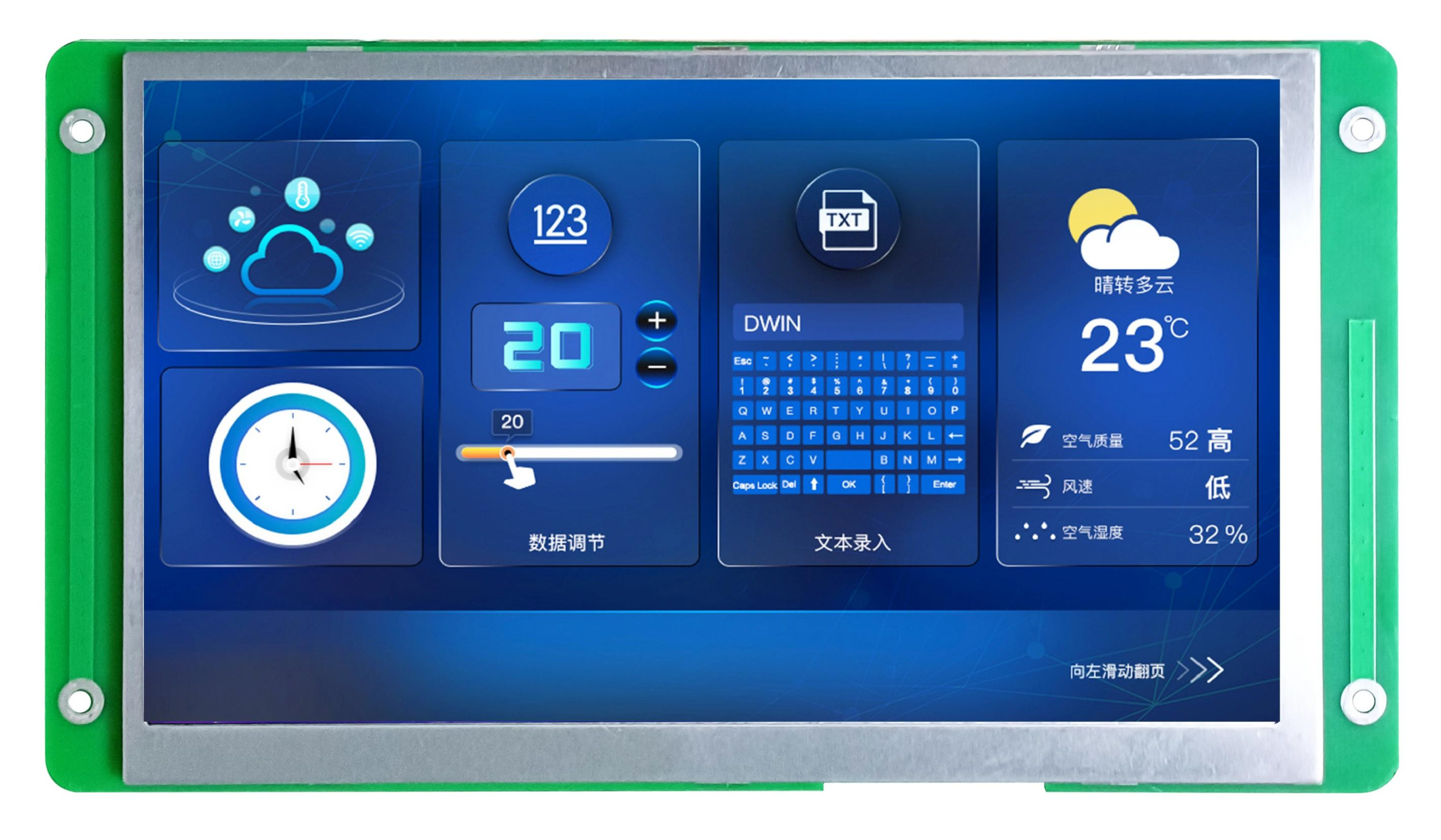

DMG10600S070_03WN | No touch panel,buzzer,RTC |

- Диагональ [Дисплей]
- 7.0"
- Разрешение [Дисплей]
- 1024×600
- Срок жизни [Дисплей]
- ≥ 30 000ч
- Защитное покрытие [Основные параметры]
- Есть
- Анти-УФ [Основные параметры]
- Да
- Цветность [Дисплей]
- 16.7M (16777216) 24bit 8R8G8B
- Тип ЖК-дисплея [Дисплей]
- IPS, TFT LCD
- Яркость [Дисплей]
- DMG10600S070_03WTC: 450nit / DMG10600S070_03WTR: 400nit / DMG10600S070_03WN: 500nit
- Угол обзора(V.A.) [Дисплей]
- Широкий угол обзора, 85°/85°/85°/85°(L/R/U/D)
- ASIC T5L [Информация об ASIC]
- T5L2
- Datasheet [Datasheet]
- ЗагрузитьЗагрузитьЗагрузить
- Версия Datasheet [Datasheet]
- 2022-11-14
- Гарантия
- 1 год
- Страна бренда
- Китай
